Purple rice, the full name of Jiangsu Zimei Electronic Technology Co., Ltd., is a member of the Xiaomi Ecological Chain Company. The main products are chargers and mobile power.
Millet's mobile power products are still very cost-effective, not only beautiful appearance, and output and input is also very force, but there is a problem is that mobile power is not equipped with a charging head, if you do not have a suitable fast charge input charging head You can only endure more than 5 hours of charging time
In order to avoid this embarrassment, start with the purple rice quick charger kit and experience the charm of fast charging
ZMI 18W Support QC 3.0 Device Charging/Charging Head/Adapter/Charger for Apple Android Phone Tablet HA612+type-c Set White 49 Yuan Jingdong Direct Link â–¼ blue courier bag
â–¼ After unpacking, use bubble paper to wrap the contents inside. Great protection, good bubble paper thick enough
â–¼ Remove the thick bubble paper and remove a small white box. The middle is the appearance of the charger, the following is the product name: ZMI Quick Charger Kit Edition, the left is 3C certification, mainstream fast charge, cable protection, the bottom is a brief introduction, suitable for Android, Apple series smart devices, there are notes in the upper right corner Includes a USB-C cable
â–¼ The small box is on the back of the bar code and two-dimensional code, as well as the production address of Jiangsu Danyang
â–¼ side of the charger printed parameters
Product Name: ZMI Quick Charger
Product Model:HA612
Input parameters: 100-240V~ 50/60Hz 0.5A
Output parameters: 5.0V-2.5A 9.0V-2A 12.0V-1.5A

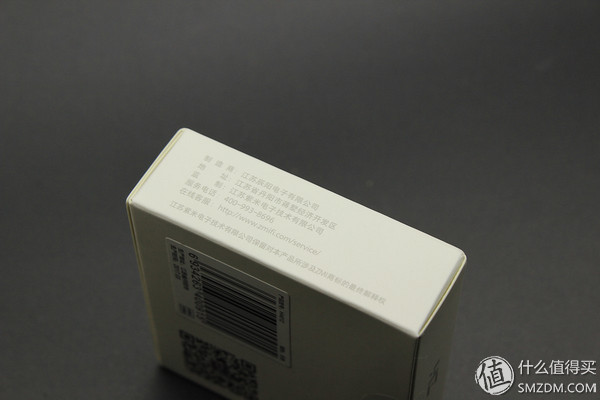

â–¼The other side is manufacturer and other information

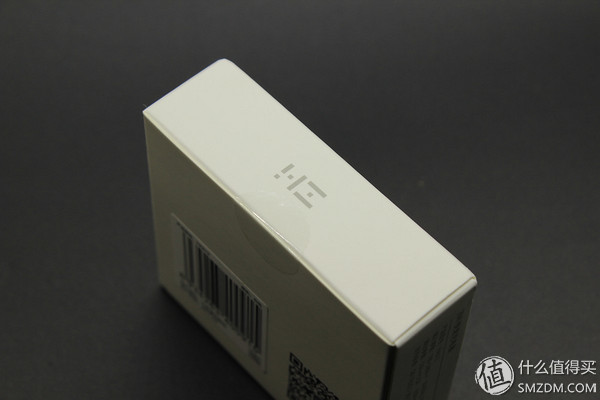

â–¼ There is a purple brand LOGO on the top, next to the seal, the seal is intact
â–¼ The charger adopts a pull-out packaging design with a paper limit, and the charger and data cable will not move in the paper box.
â–¼ Take out everything inside, charger, Type-C data cable and instructions
â–¼The manual mainly introduces the appearance and parameters of the charging head
â–¼The back is a warranty and warning
â–¼Type-C line is tightly tied with white rubber band
â–¼ USB plug is square, followed by outlet protection, looks especially like Apple original line
â–¼The Type-C plug is relatively rounded and there is also an outlet protection behind it.
â–¼ look at the contact details of the USB interface
â–¼ Zoom in to see
â–¼Contact details of the Type-C interface
â–¼ Zoom in to see
â–¼ Charging head appearance, the overall relatively mellow, positive and negative are white, even the brand LOGO are not
â–¼A plug can be seen silk screen, printed some of the parameters of the charging head, as well as a variety of information
â–¼The charger's USB charging port is sealed with a white sticker
â–¼ Remove the white sticker to see the USB charging port inside the white plastic parts
▼ Before you look at the charging head, first test the wire resistance of this wire, about 129.41mΩ
â–¼The charging head 5V no-load voltage 5.07109V
Stepping current test, the maximum output 5.27V 2.7A 14.2W, there is a linear line complement, the maximum line compensation voltage is about 5.3V, reaching the nominal
â–¼ 9V no-load voltage of charge head 9.78881V
Stepping current test, the maximum output 9.33V 2.6A 24.3W, there is a linear line complement, the maximum line voltage is about 9.3V, to achieve the nominal. Output power is very awesome, charging head is not very large, but the maximum output power can reach 24W
â–¼12V no-load voltage 12.11103V
Stepping current test, the maximum output 12.38V 2A 24.8W, there is a linear line complement, the maximum line compensation voltage is about 12.4V, reaches the nominal, when the current reaches 2A above, the voltage drops, the maximum output power after stepping down comes to 26.5 W, a bit terrible
â–¼ Charging measurement, charging ipad pro 9.7, support for Apple device recognition, charging mode Apple 2.4A charging mode, the current easily came to 2.3A or more
â–¼Iphone 7 plus charging, mobile phone power is about 70%, identify Apple devices, charging current is about 2A
â–¼ Charetech 7-in-1 mobile power charge, support QC3.0 fast charge
â–¼ Charging the Meizu MX5, does not support MTK's PE fast charge, the actual charging power is about 7W
V. Summary
1. The appearance of purple rice fast charging charging head is very common. At first glance, it looks like the original charger of millet, especially the depression of USB charging port, especially like
2, although the appearance of ordinary, but the output is very awesome, the maximum output power can reach 26W, and cable complement, but also supports the recognition of Apple devices, if the daily equipment is not much, and is to support Qualcomm fast mobile power and Apple mobile phone, then A single port charger fully meets daily use
3, the charging head is very awesome, and equipped with a Type-C interface wiring, and did not send the line of the Micro USB interface, so now the Type-C interface will slowly become mainstream, buy mobile phones and mobile power You need to pay attention
thank you all!
END
