In June of this year, the Internet brand micro-whales took the lead in launching a new micro-projection product, the F1, and successfully raised the upper limit of the brightness of micro-projections to more than 1000 lumens. They swept all people's contempt for the micro-projection brightness, and they were really elated.
However, the micro whale did not stop there, and five months later, blazing a new series - the birth of the micro whale M1, has brought the industry's smallest 1080P resolution micro-projection so far, plagued the two major pain points of micro Little whale resolved one by one. Micro whale also brushed a wave of presence with these two products.
Previously, we had written an experience article for the Microwhale F1 and the upgraded F1 Plus that were later launched. We would like to review the F1 and F1 Plus here.
This time we are talking about the micro whale M1.
Micro whale M1 can become the smallest 1080P micro-projection, and on the line at the end of this year, can not do without the upper reaches of the Big Brother TI (Texas Instruments). TI released the DLP Pico 0.33-inch Full HD chipset in February of this year, becoming the industry's smallest 1080P display solution. Including the DLP3310 Digital Micromirror Device (DMD) and DLPC3437 controllers, the new DLP3310 delivers the highest brightness performance in the industry's 0.3-inch imaging panel with DLP MEMS technology.

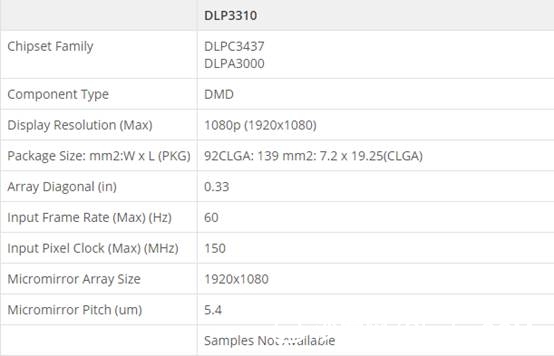

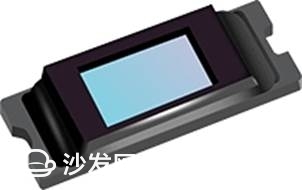

TI DLP3310 DMD
At the same time, TI said that this 0.33-inch Full HD chipset and related components will be available in the second half of 2017, I did not expect micro whale has officially launched in volume production in October, the speed is amazing. According to news learned, other brands based on the TI DLP3310 chip micro-projection products are expected to be available early next year, then, 1080P resolution micro-projection will no longer be rare, and the small whale projection M1 can use the time difference first city.
Sure enough, in the double eleventh, the micro whale M1 has achieved very good results.
Returning to this product, I personally believe that the priority of the design of micro-whales on micro-projects is very high. Whether it is the K series that won the IF Design Award, or the M series that won the China Good Design Gold Award this time. , can be counted as the face value of the micro-cast camp.

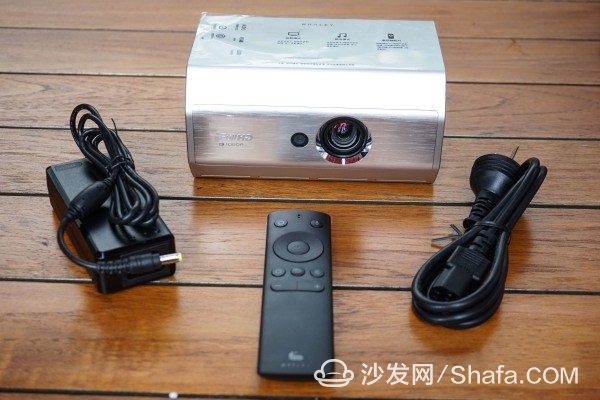

The size of the micro whale M1 is well controlled. The measurements of 175*124*91 mm and the weight of 1.5KG are only one slap for me and can be mastered in one hand.

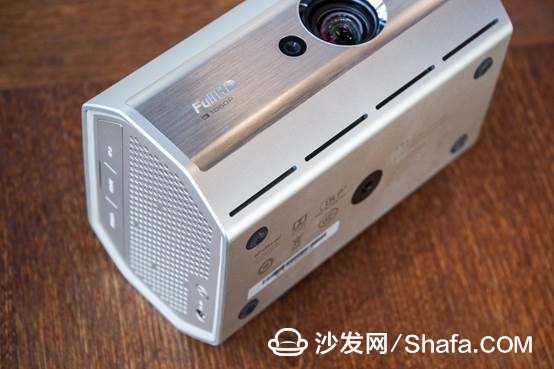

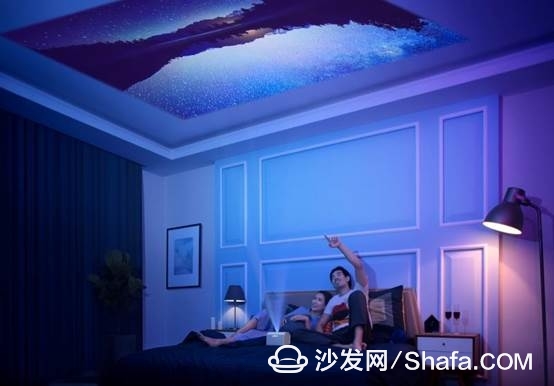

The biggest design highlight of the Micro Whale M1 is the octagonal geometric element design style. This kind of design brings a benefit and can be easily directed in all directions. For example, as shown in the figure below, a ceiling theater can be created by shooting upwards. We also tried it, and we will talk about it in detail later.

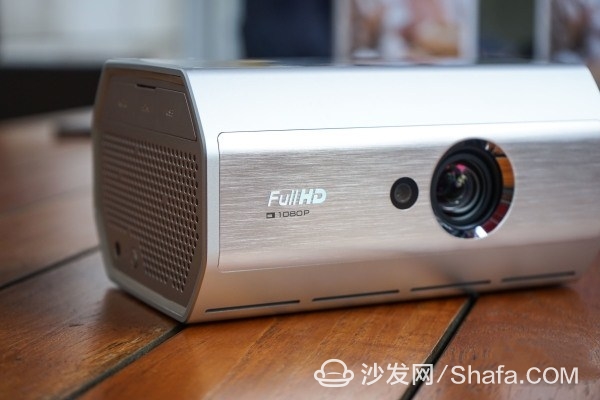

Micro-Whale Projection M1 is the first time in the industry to use a large area of ​​sandblasting process of pure metal aluminum extrusion shell, a kind of seamless feeling. Platinum light gold is a pale grayish gold, very elegant, fortunately not local gold, or too earth.
Due to the large area of ​​metal materials, the actual feel is good to the explosion, of course, projection is not every day in my hand, but sometimes placed there, or people have a kind of impulse to want to touch.

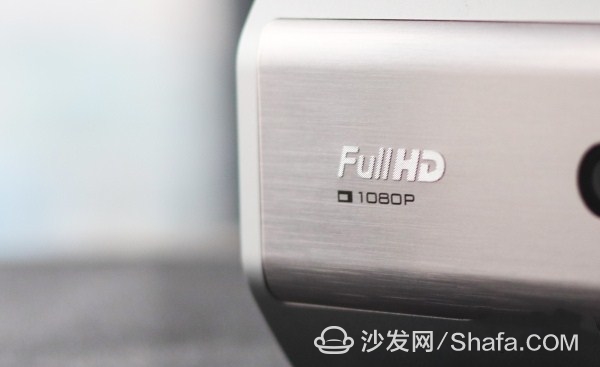

The logo of the "FullHD 1080P" body shows its presence as a high-resolution micro-projection all the time. 1920 * 1080 resolution, 2 million total pixels, 720 lumens brightness, contrast ratio of 5000:1, volume compared to the same type of products on average reduced by 50%.

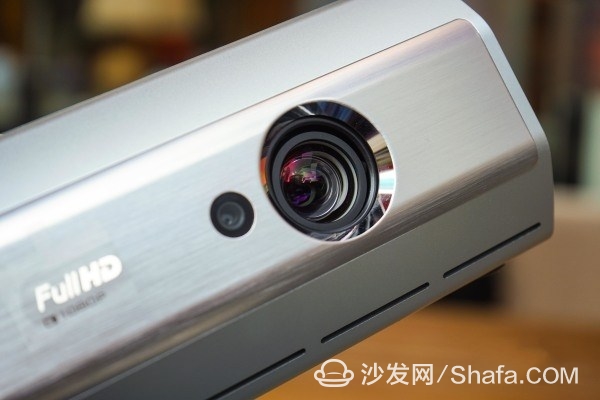

Using DLP display technology, projection ratio 1.2:1, 2.6 meters can shoot 100 inches screen. In the 0.5-3m projection distance, 40-300 inch large screen can be cast. The lens is a highly transmissive glass lens that supports vertical trapezoidal correction.

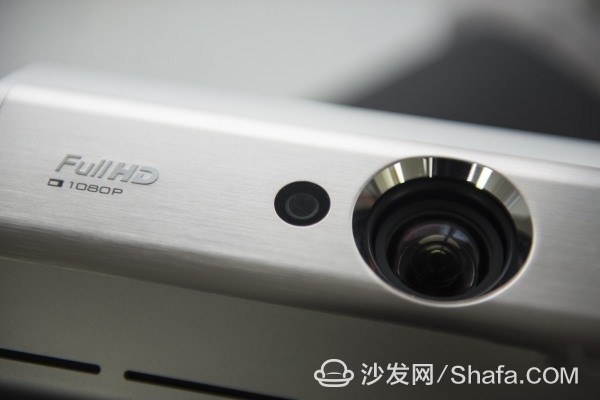

Next to the lens is a high-sensitivity camera that enables 1-second autofocus. The “1 second autofocus†function is a first for microwhales on K1 products. The reason for this highly praised function is that microports need to be moved around frequently due to their portability, and the use of autofocus eliminates the need for frequent manual focusing. . This function is also used by anyone who knows.

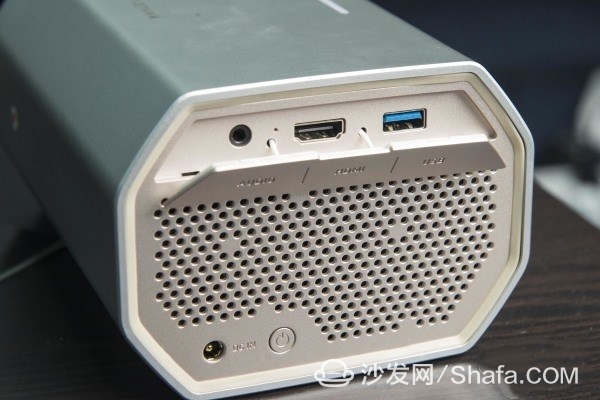

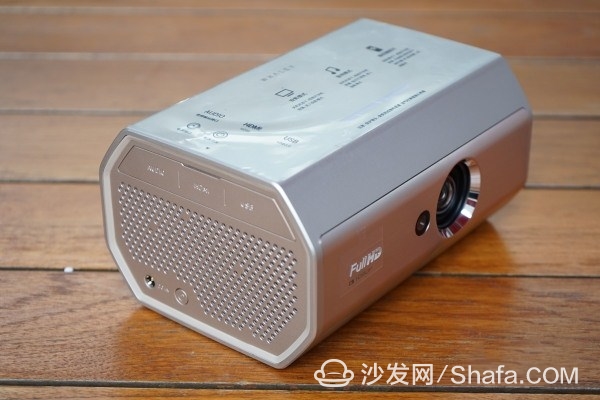

The interface, a USB 3.0 interface, an HDMI 2.0 and an audio interface, to meet the lightweight home audio and video equipment connection is no problem, if you want to build a complete home theater system, with micro-projection is not realistic.
Performance, micro-whale projection M1 is the first micro-projection product using A73 architecture 64-bit multi-core processor, performance is 60% higher than A53, GPU is Mali450, can decode 4K video format, which in the following video test Will be mentioned. 2GB of running memory, 8GB of flash memory.

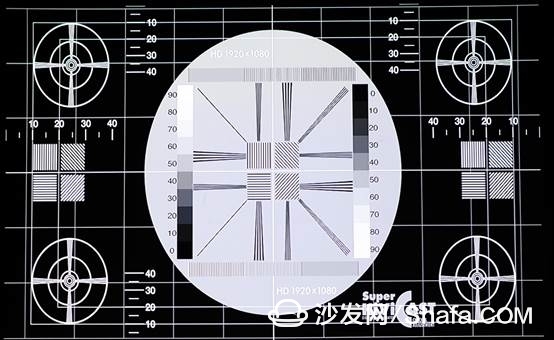

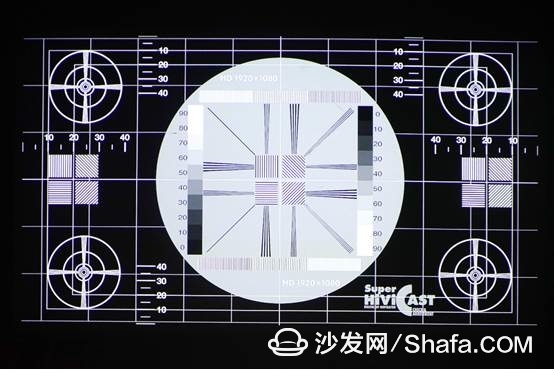

For this projection, everyone's concern is about how much improvement the 1080P resolution brings. We compared the whale F1 PLUS with 1280 x 800 resolution. The test tool used was the Super Hivi Cast test dish.
Little whale projection F1 PLUS real shot
Micro whale projection M1 real shot
This is not obvious. We enlarge the concentric circles in the lower left corner.

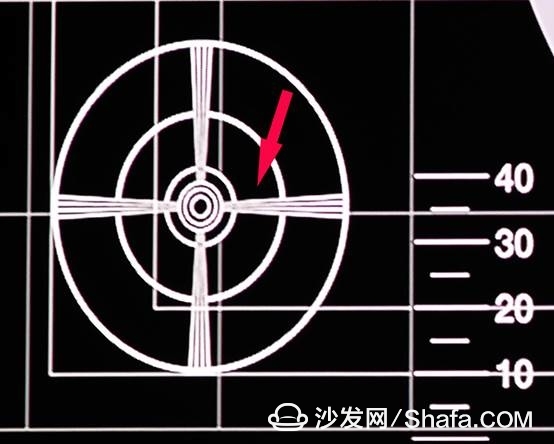

Micro whale projection F1 PLUS zoom in

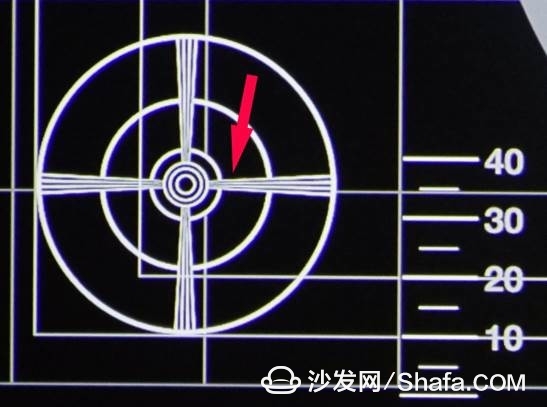

Micro whale projection M1 zoom
Looking at the part pointed by the arrow, 800P's F1 PLUS has already had a line of adhesion, while the 1080P's M1 is still clear, which is the advantage brought by high resolution. In the actual experience, when watching the subtitles or viewing the screen closer to the distance, the picture quality of the M1 presentation can be felt more finely.
In terms of color, the micro whale M1 reached the DCI-P3 color gamut, and the first impression of the screen is very good. It is not particularly gorgeous, but it is very texture, and it has a feeling in the cinema.

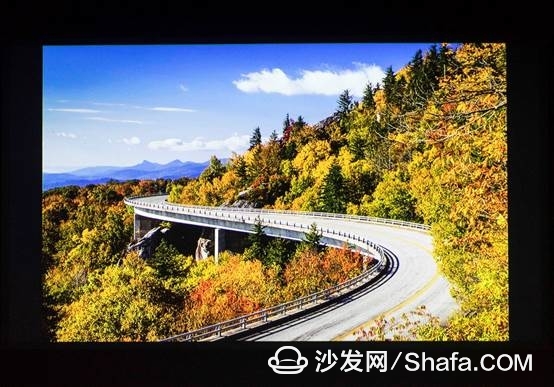

The autumn scene in the image above, the sky blue gradient, the layering of white clouds, and the different yellow leaves present are all very well separated. Regarding the control of color, such a small volume of M1 is beyond expectation. However, if you are accustomed to ordinary home 1080P projector, then compared to the micro whale M1, there is still a gap, especially in the permeability of the picture there is room for improvement.

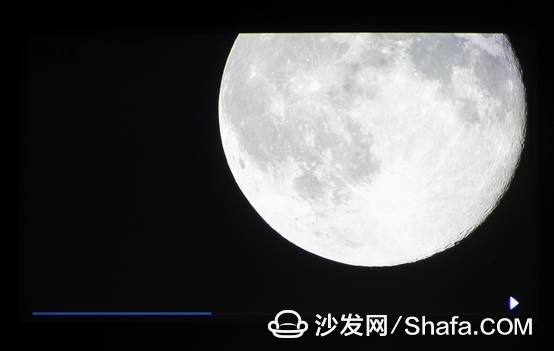

In terms of contrast, projection is naturally superior to television. Especially in the case of lights off, the advantage of contrast is even more pronounced. Unlike the LCD TV can not be completely black, the projector in the dark environment, black is black, is pure black, so this moon photo contrast is very good, highlight the brightness despite the high, but the details are retained The lunar surface can be seen clearly. At the junction of the moon and the night sky, even the uneven terrain can be clearly seen, and the details are quite outstanding.

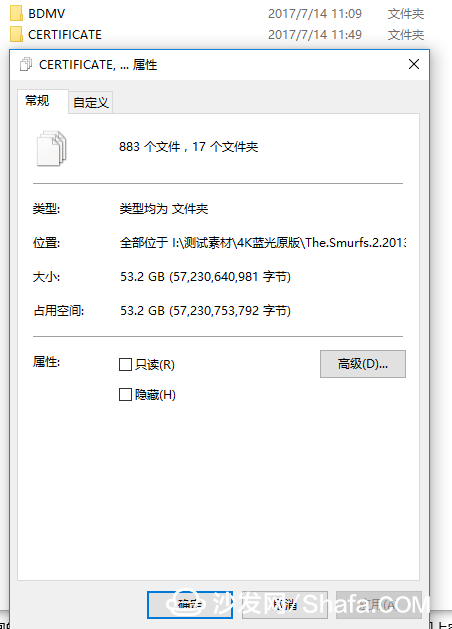

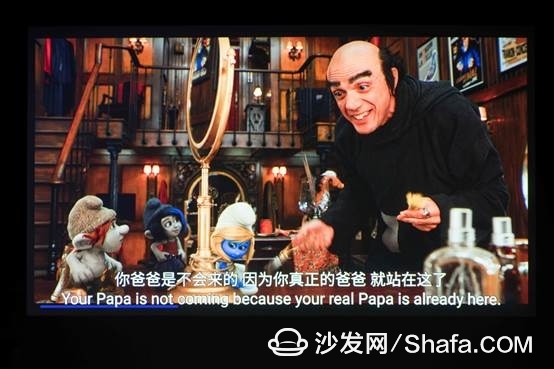

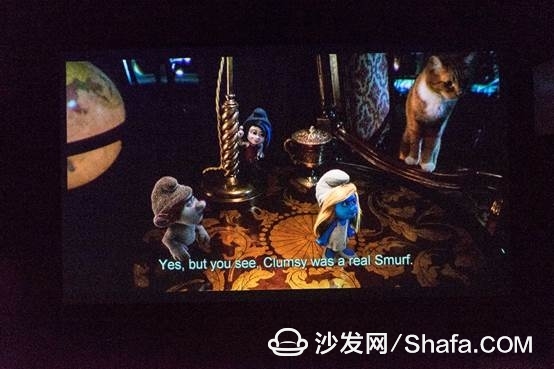

As mentioned earlier, the Micro Whale M1 can decode 4K video. We specifically found a 4K HDR version of the Blu-ray original "Smurf 2" with a capacity of 53.2GB to see how the M1 performs in this extreme condition.
Very surprisingly, the Micro Whale M1 can not only open videos, but even play smoothly! There is no stalling in pulling the progress bar!
And, M1 is supporting the HDR10 standard, so it will be more effective when playing HDR movies. Here are more screen shots.
The details and color enhancement brought by HDR are very significant, and the golden color shown in the above figure is very full and bright.
In terms of sound, the compact MMW whale projection M1 is equipped with symmetrical left and right audio dual speakers, supporting Dolby and DTS audio dual decoding.

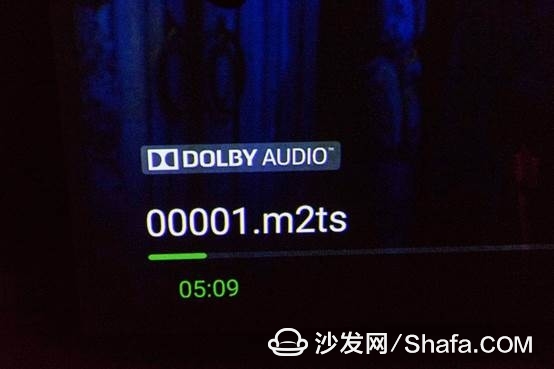

Dolby Audio sounded successfully
It is appropriate to describe the sound of the M1 with a small body and large energy. When watching "Smurf 2", the effect was obvious at the level of dialogue and sound, the details on the details of the sound were more delicate, the high-frequency transition was natural, and the performance of the large dynamic sound was quite good. Don't worry if you still need an external sound, if you are not very harsh on the sound, your own sound is sufficient.

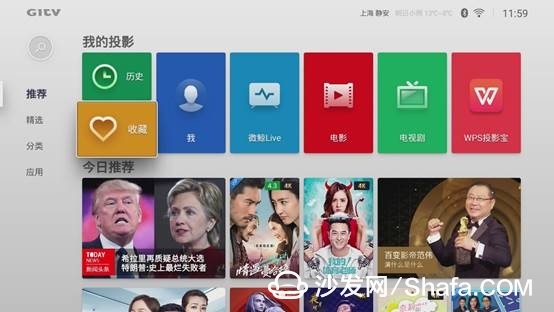

On the system side, the WUI is quite mature and basically the same with the micro-whale TV. It is worth mentioning that since the processor was upgraded this time, it was smoother when sliding and menu switching.

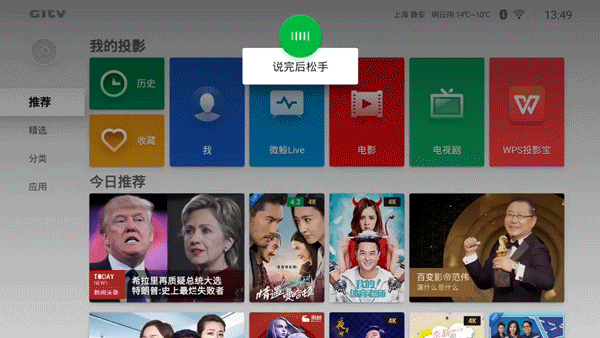

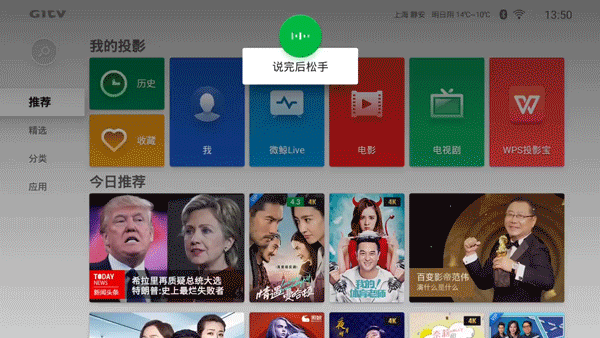

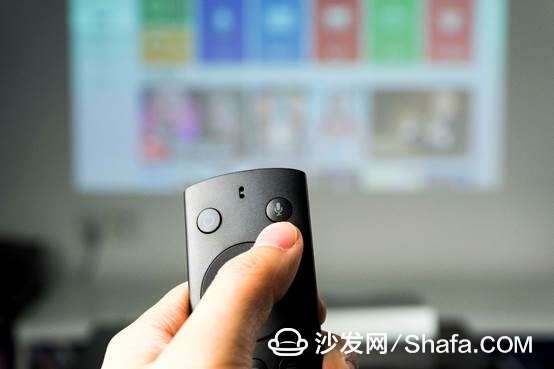

It also supports voice control as always.

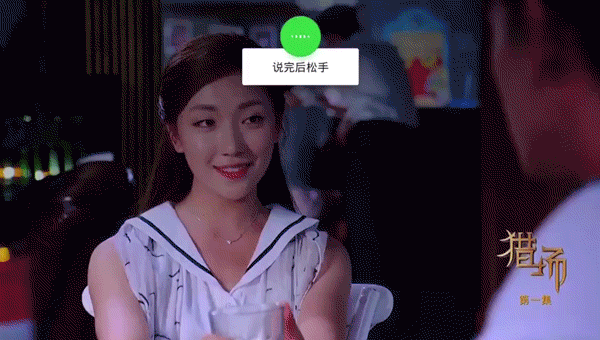

Voice control can support a lot of functions. Common ones include: checking the weather, stocks, setting reminders, and controlling the playback of movies and TV shows. Both the reaction speed and the recognition accuracy rate are quite good.
Check the weather
Query stock
Set reminder
Play TV shows
Control playback

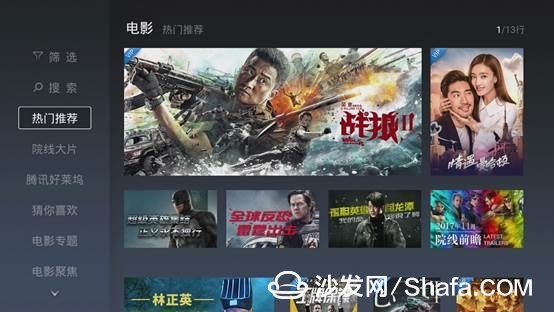

In terms of content, the Micro Whale relies on the strong production capabilities of Chinese culture and integrates platforms including Tencent Video, BBC, TVB, Super League, and British Nick High-End Children, as well as an exclusive panoramic VR channel and Blu-ray source model. It can be called the most full-screen movie library on the big screen side of the Internet. Of the top 100 films in the box office in the Mainland, 74 can be viewed directly in the micro-whale.
The popular movie and TV dramas like "War Wolf 2" and "Hunting Ground" can be seen here. Some of the sources even have 4K resolution options, which is hardly more favorable to HD.

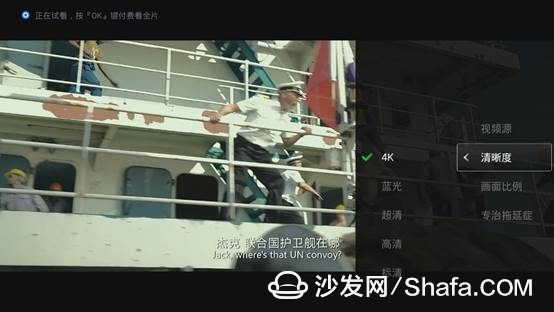

4K definition optional

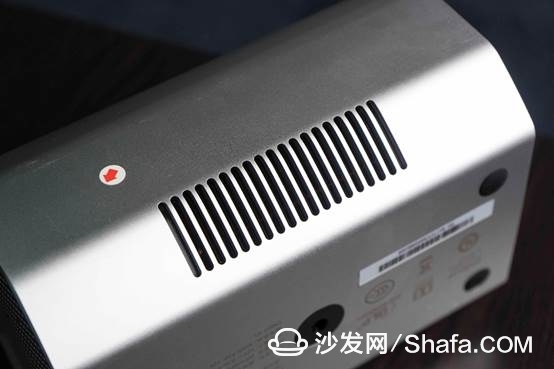

With such a small size, equipped with such a high resolution and not low brightness, the problem of heat dissipation must be a top priority. The fins of the Micro Whale M1 are located on the back of the fuselage. After playing a 1080P video for an hour and a half, the measured temperature is 39.2°C.

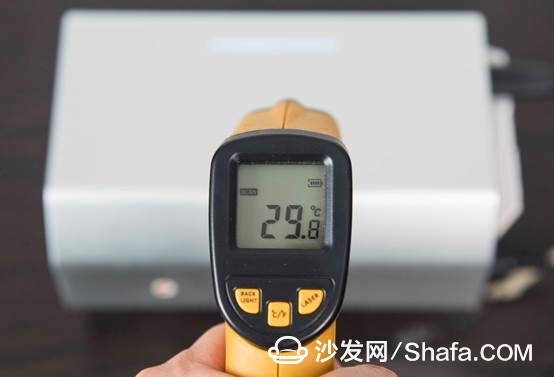

The top of the fuselage with more contacts is only 29.8°C.

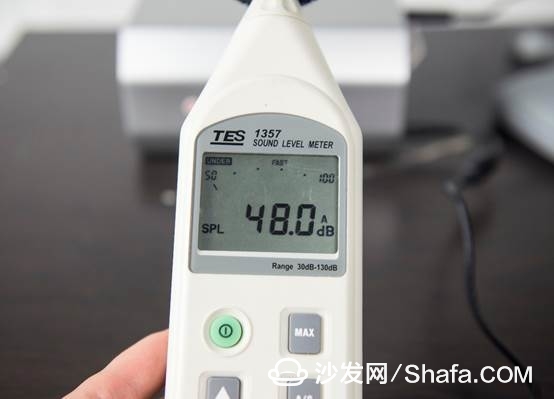

In respect of noise, in the evaluation environment with a noise floor value of 30 dB, the noise value of the M1 measured at a distance of half a meter from the projector is 48 dB, which may be due to the engineering machine. M1 does not perform as well as F1 PLUS in terms of noise. .

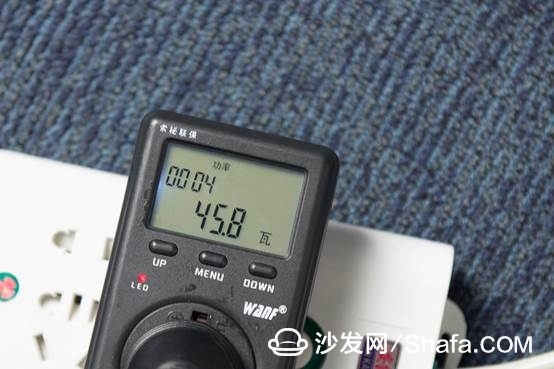

In terms of power consumption, only 45.8 watts are actually measured, which is very low for a projector. It is even lower than F1 PLUS 65W.
Conclusion
The release of the micro-whale projection M1 marks the official entry of the micro-projection product into the 1080P era. The micro-whales use the F1 and M1 products to crush the two major bottlenecks in brightness and resolution. And, whether it is the brightness or the resolution improvement, the color performance is well balanced. Next, it was the launch of the F1 PLUS highlights and M1 high-resolution micro whale projection.
